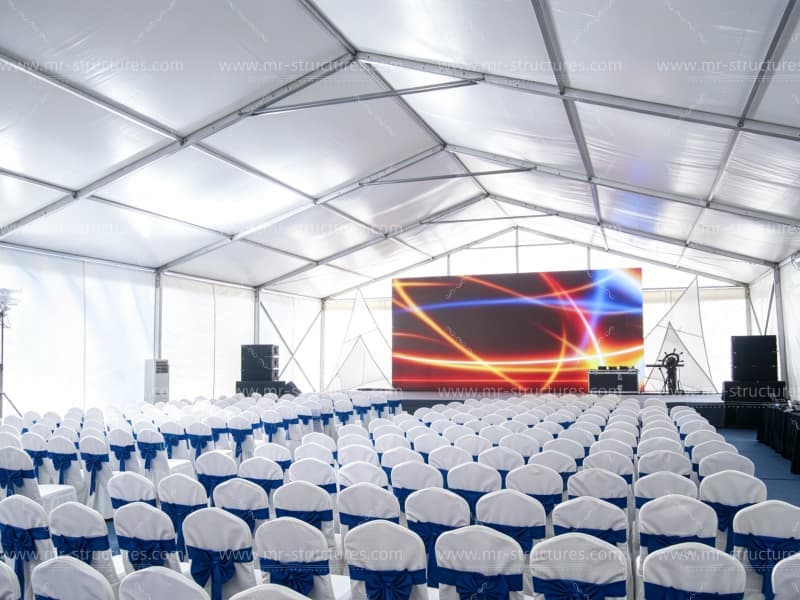

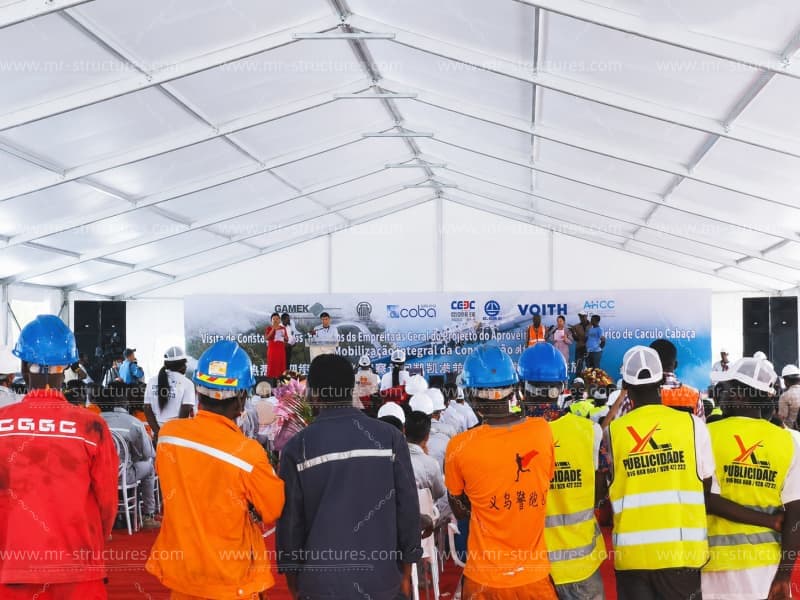

Our 20x30m white aluminum outdoor event tent is a high-performance, A-shaped temporary structure designed for large-scale outdoor events. With a clear-span interior of 600 m², it provides an open, column-free space ideal for conferences, product launches, weddings, and outdoor festivals.
Built with a 6061-T6 anodized aluminum alloy frame and covered with 650–850 g/m² double-coated PVC fabric, this aluminum outdoor tent delivers outstanding weather resistance, fire safety, and structural durability. The modular design allows the length to be extended in 3m or 5m bays, making it a truly flexible solution for any event size.

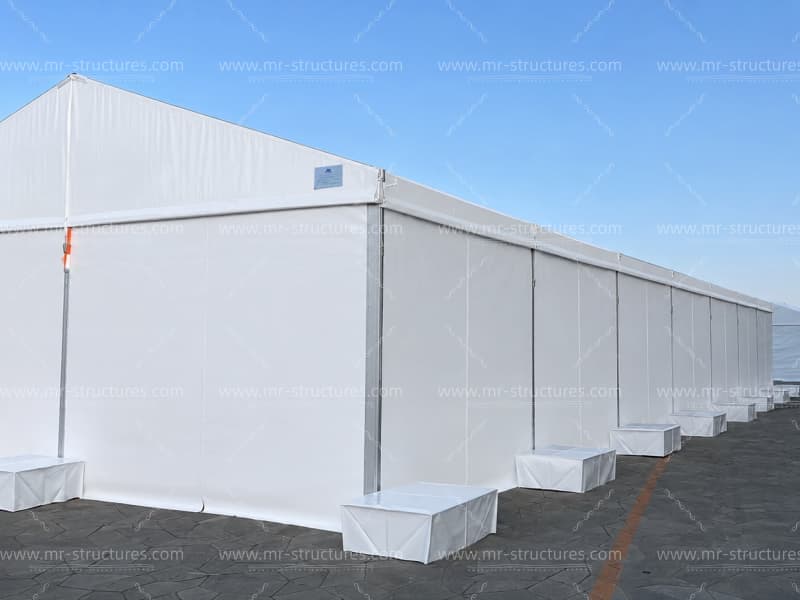

Choose from a wide range of sidewall options including solid PVC panels, transparent PVC, glass walls, and sandwich panels. The 20x30 event tent is engineered to withstand wind speeds up to 100 km/h and is fire-rated to B1/M2 standards, ensuring both safety and peace of mind for your guests.

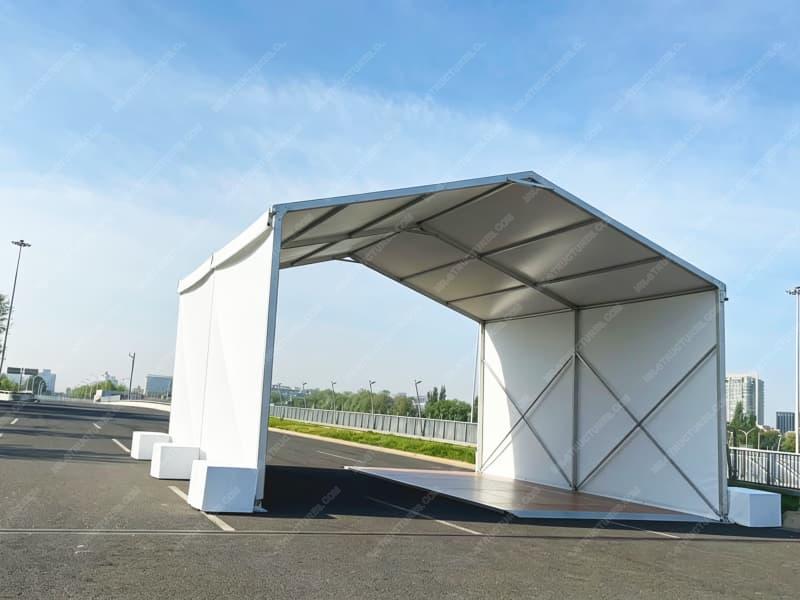

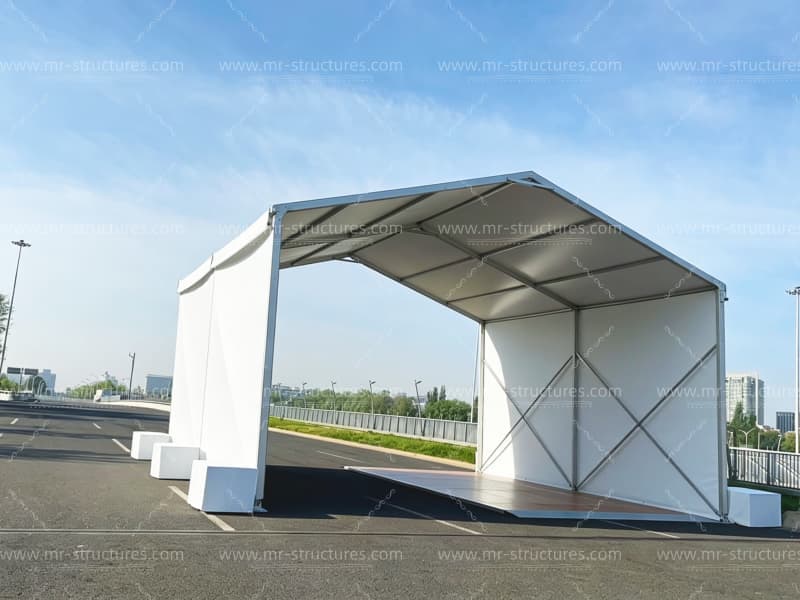

The 20x30 outdoor event tent features a classic A-shaped aluminum frame structure that can be quickly assembled and disassembled. As a modular system, the span and length can be adjusted to accommodate different venue requirements and event scales.
| Tent Shape | A-Shaped (Gable) Outdoor Event Tent |
| Standard Size | 20m × 30m (600 m² clear span) |
| Frame Material | 6061-T6 Anodized Aluminum Alloy |
| Roof & Sidewall Cover | Double-Coated White PVC Fabric (650–850 g/m²) |
| Optional Wall Cover | PVC Wall, Glass Wall, Sandwich Panels, ABS Panels |
| Available Widths | 10m to 50m (custom sizes available) |
| Eave Height | 2.5m / 3m / 4m / 5m (width-dependent) |
| Applications | Outdoor Events, Weddings, Parties, Exhibitions, Trade Shows, Corporate Functions |
● Span Width: 10m to 50m (standard 20m × 30m configuration available)
● Eave Height: 2.5m / 3m / 4m / 5m depending on span width (custom heights available on request)
● Bay Length: Unlimited — extended in 3m or 5m modules to match any event footprint
● Wind Load: Up to 100 km/h wind resistance
● Snow Load: Up to 75 kg/m²
● Fire Rating: B1 / M2 flame retardant PVC fabric
| Aluminum Outdoor Event Tent — Size Chart | ||||
|---|---|---|---|---|
| Model | Span (Width) | Eave Height | Ridge Height | Main Profile (mm) |
| MST-6 | 6m | 2.5m | 3.5m | 48×84 |
| MST-9 | 9m | 2.5m | 4.1m | 48×84 |
| MST-10 | 10m | 2.5m | 4.3m | 48×84 / 48×100 |
| MST-12 | 12m | 3m | 5m | 68×122 |
| MST-15 | 15m | 3m | 5.4m | 108×150 |
| MST-18 | 18m | 3m | 5.9m | 108×150 / 112×203 |
| MST-20 | 20m | 4m | 7.2m | 112×203 |
| MST-25 | 25m | 4m | 8m | 112×203 |
| MST-30 | 30m | 4m | 8.8m | 113×259 |
| MST-40 | 40m | 4m | 10.5m | 120×300 |
| MST-50 | 50m | 4m | 12.1m | 120×350 |
